4.1.6. TI TMS570-based BMS-Master v1.2.3

Note

The changelog for this release is found at Section 4.1.1.1.

There are no changes that need a new documentation compared to v1.2.2, therefore see TI TMS570-based BMS-Master v1.2.2.

4.1.6.1. Removing the Pull-up Resistor for the PHY

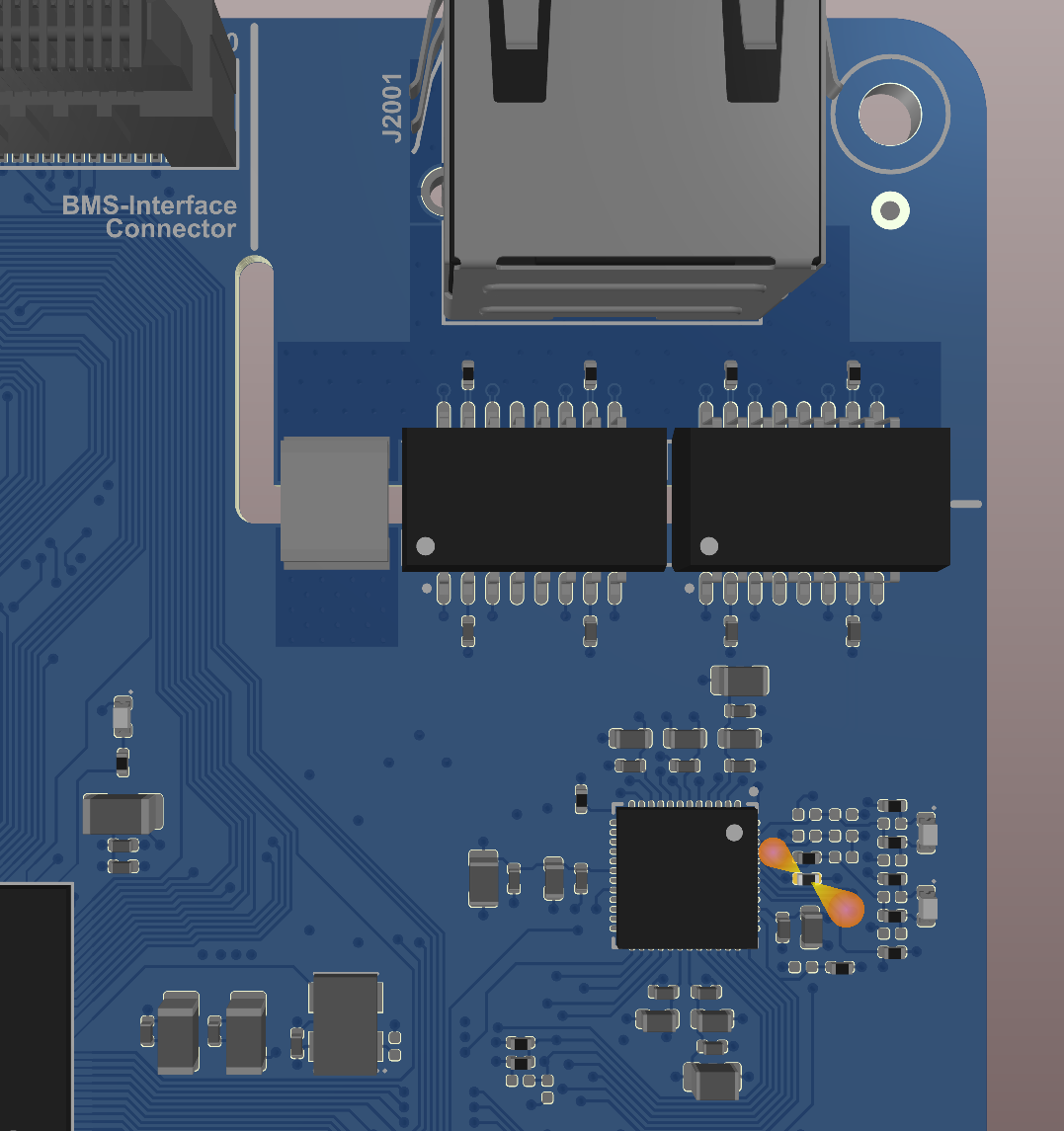

In BMS-Master v1.2.3 and below, the PHY is enabled by default, which can cause issues when connecting the Ethernet cable. To avoid this, the pull-up resistors enabling the PHY should be removed. The image below shows the location of the pull-up resistors on the PCB.
